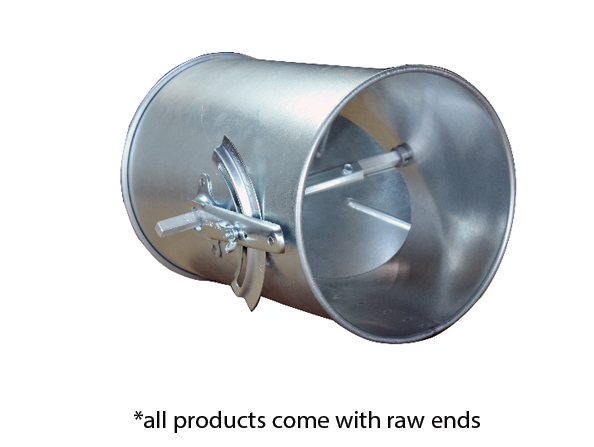

A circular disk mounted on an internal shaft pivots to control airflow from fully open ( 100% flow), to fully closed (shutting off all air), to anything in between. Once the butterfly valve is set, a locking quadrant holds it in place.
- Known as Butterfly Damper, Butterfly Valve, or Volume Damper
- Diameters are +/- 1/8 inch.
